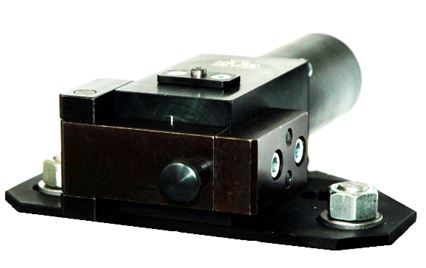

VPS Small Calibre Drilling Jig
PROTOTYPA VPS Small Calibre Drilling Jig serves for the drilling of take-off holes into the rifle, pistol or shotgun cartridges up to calibre 12 for the pressure measuring provided by piezo-electric pressure measurement or by Copper crushers.

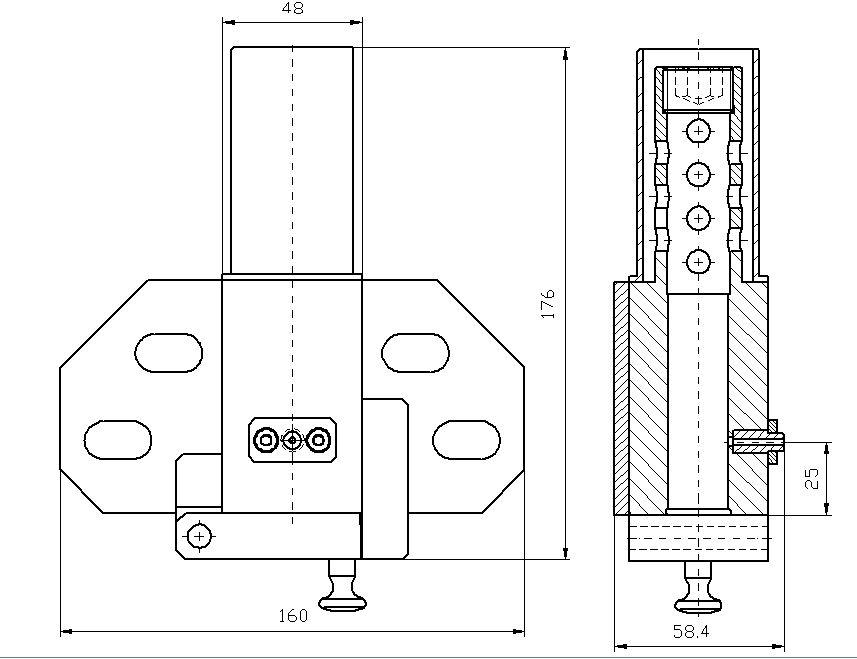

Technical description of the VPS drilling jig:
- VPS is one purpose drilling equipment
- For each calibre is produced appropriate modification of VPS
- Manufactured chamber for inserting of cartridge case
- Position mark and groove for extractor
- Bullet catcher with holes for leak of expanding gases and protective tube for guidelines gases
- Replaceable drilling bushing fixed on the top of body
- Distances from the breech lever face accordance with C.I.P. standard
- Drilling bushing diameter 2 mm for pistol and rifle cartridges
- Drilling bushing diameter 3 mm for shotgun cartridges
- Drill stop for rim fired cartridges (22 Long Rifle, 22 Short and 22 Win. Mag.)
- Base plate for attach to pedestal drill
Example of usable calibres for VPS:
| 9 mm Luger | 338 Norma Mag. | 6.5 Creedmoor | 8 x 57IS |
| 9 x 19 | 338 Lapua Mag | 17 HMR | 12.70 |
| 9 x 21 | 30-06 Spring. | 22 Short | 12.76 |
| 9 mm Makarov | 38 Special | 22 Long Rifle | 16/70 |
| 9 mm Brow. court | 40 S&W | 22 Win. Mag. R.F. | 20/70 |
| 9.3 x 72R | 44 Rem. Mag. | 223 Remington | 20/76 |
| 300 AAC Blackout | 45 Auto | 7.62 x 25 Tokarev | 28/70 |
| 300 Win. Mag. | 4.6 x 30 | 7,62 x 39 | 410/70 |
| 308 Winchester | 5.7 x 28 | 7.62 x 54R | 410/76 |
| 357 Magnum | 5.45 x 39 | 7.65 Brow. | |
Prototypa is able to deliver VPS to all produced test barrels up to cal. 338 Lapua Mag.
