STZA 40 Firing Rest

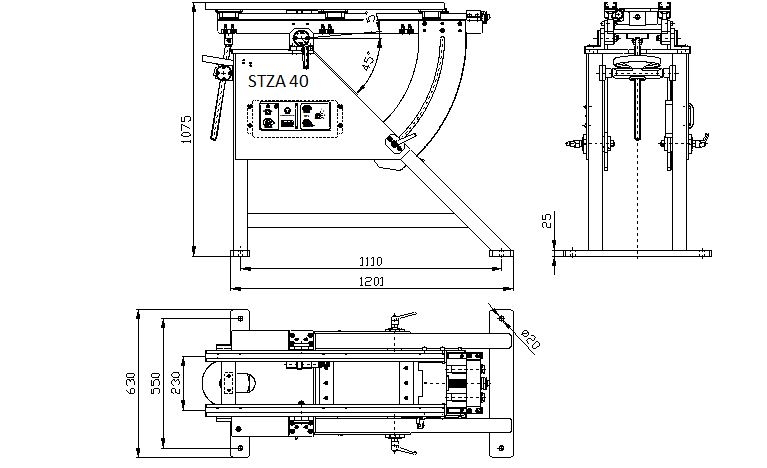

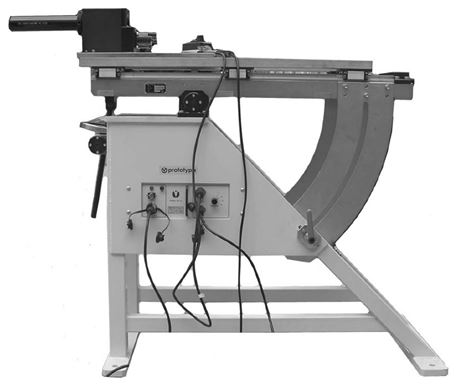

PROTOTYPA STZA 40 Firing Rest (see technical drawing bellow) is determined as a base for tightening of Universal ballistic receiver UZ-2011/40 or similar from production of Prototypa-ZM company. The firing rest is equipped by recoil system and by elevation possibility up to 45°. High elevation angle allows to fire grenade launcher cartridges at maximal reachable distances. STZA 40 Firing rest is suitable especially for firing of 40 mm grenades (40 x 46mm LV or 40 x 53mm HV).
STZA 40 is universal stand equipped by clamping rails with 230 mm pitch for tightening of various Prototypa firing equipment.
From STZA 40 could be fired cartridges up to cal. 12,7 x 99 mm.
| NSN | RN | NCAGE | Name |
| 4,93316E+12 | STZA 40 | 0461G | FIXTURE, WEAPON COMP |
Main features of STZA 40:
- It is possible to fix on STZA 40 various firing equipment (e.g. Universal receivers UZ-2011, UZ-2011/40, UZ-2002).
- Stepless setting of elevation angle with a fixing at the set position.
- Inbuilt recoil system up to cal. 12,7 x 99 mm (40 x 46 mm LV and 40 x 53 mm HV included). Return to initial position is controlled by a damper.
- Space for mounting of Electronic box for operation of used Universal receiver (Electronic box is not a part of STZA 40).
Technical parameters of STZA 40:
| Length | 1201 mm |
| Width | 630 mm |
| Height | 1075 mm |
| Base plate dimensions | 1201x630x15 mm |
| Total weight max. | 211 kg |
| Maximum length of recoil stroke | 75 mm |
| Maximum force of recoil spring | 764 N |
| Clamping strip pitch | 230 mm |
| Clamping strip length | 1016 mm |
| Elevation range (stepless) | from -5º up to 45º |
| Azimuth range | None |
Optional accessories:
- Universal ballistic breech (receiver) UZ-2011/40, …
- Remote Control Electronic Box STZA-E/15
- Fixture for zeroing of the barrel and optical bore scope
