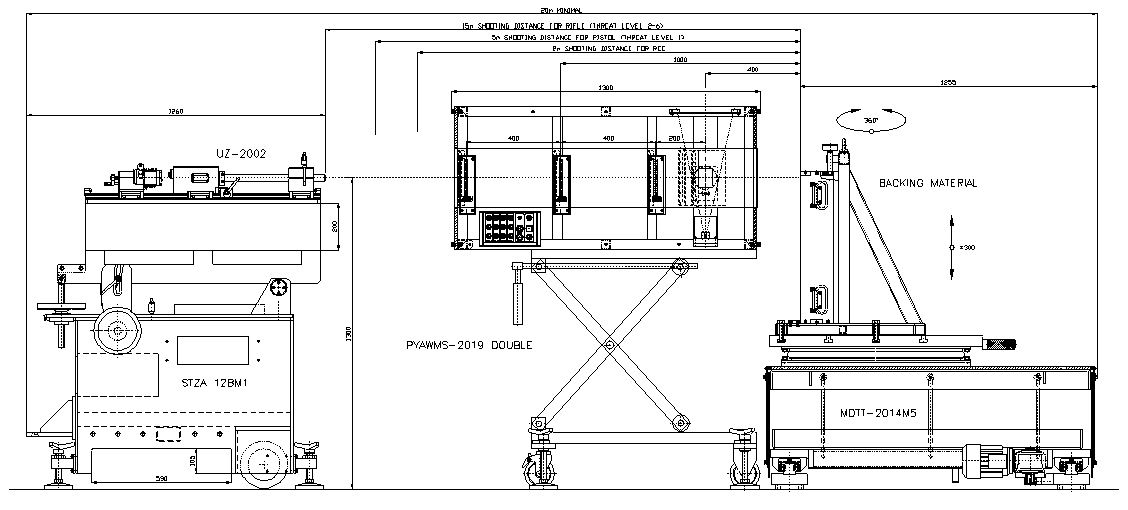

PYAWMS-2019 – Yaw Measurement System with Double Velocity Measurement
Main features of PYAWMS-2019 with integrated LS-01L Double:
- Device measures bullet velocity, bullet yaw and spit orientation of individual shot. Device is easily moveable.
- Device is controlled by PC computer (or laptop). Interface is Ethernet cable or Wi-Fi connection.
- User friendly BMS software supports other Prototypa ballistic measurement devices with automatic data export.
- BMS software shows pictures of bullets in axis X and Y, their processing and evaluation of angle.
- BMS software displays yaw in axis X, axis Y and calculates total yaw by superposition.
- BMS software automatically calculate bullet velocity drop, impact velocity on target or velocity 2.5m in front of target
- Align by rope before shooting test.

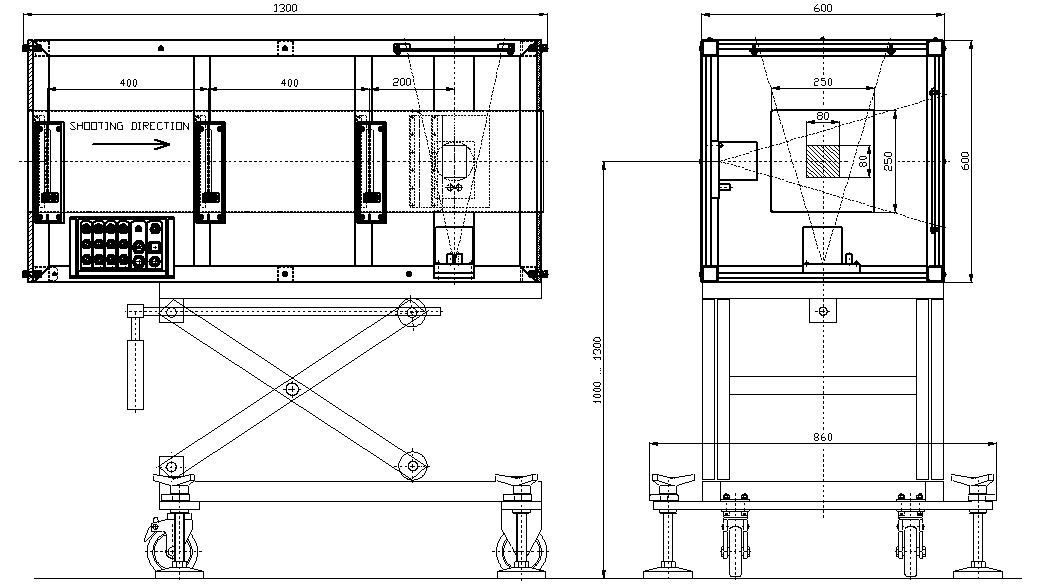

Technical parameters of PYAWMS-2019 with Double Velocity Measurement:
| Measured parameters: | Bullet yaw, velocity, spit |
| Principle of measurement: | two orthogonal cameras and built-in flashlights |
| Light gates screen: | 3 pcs |
| Length of projectile: | up to 80 mm |
| Range of calibers: | from 2.5 mm to 12,7 mm |
| Active area: | Ø 100 mm |
| Bullet velocity range: | 25 – 2000 m/s |
| Bullet velocity resolution: | 0.1 m/s |
| Bullet velocity accuracy: | ±0.5 % |
| Weight: | 200 kg |
| Power AC: | 90-260 V, 50-60 Hz, 100 VA max |
| Power DC: | 9-18 V, 100 VA max |
| Operating temperature range: | -10 to +40 ºC |
| Ingress protection: | IP63 |
| Interface: | 10/100 Ethernet, USB, Wi-Fi |
| Adjustable center height: |
Optional accessories:
- LS-01L Velocity light gates (Double)
