PROTOTYPA PST-2S Primer Sensitivity Tester. The Primer Sensitivity Tester PST-2S with the measuring stand is a multifunctional device designed for testing of primers for cartridges for small arm weapons within the meaning of Manuals of Proof and Inspection Procedures for NATO ammunition (e.g. AC/225(LG/3-SG/1)D8, AC/225 (Panel III-SP.1) D/170) etc.). Primer is tested in appropriate cartridge case (primed cases taken from production line or gained by disassembling of cartridges).
Main features of PST-2S:
- Conducting primer sensitivity test procedures.
- Fully adjustable components.
- High precision of drop height measurement.
- Easy and accurate levelling.
- Easy and safe handling.
- Fixture head for each calibre.
- Remote firing.
- Integrated electronics, exhaust fan and storage boxes into the PST-2S table.
- LED indicator of correct placement of the ball
- Compact dimensions.
- Optional ball weight can be added according to customer requirements.
- Optional calibres can be added according to customer requirements.
NATO Standard: 1 PFP(NAAG-LCG/1-SG/1)WP(2010)0002

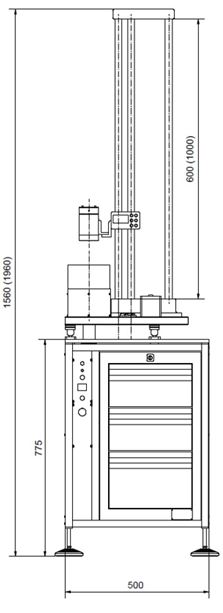

Technical parameters of PST-2S:
| Calibre range: |
Up to 14,5 x 114 mm |
| Height: |
1960 mm, (1560 mm) |
| Length: |
570 mm |
| Width: |
560 mm |
| Fan efficiency: |
144 m3/h |
| Base plate dimensions: |
Ø 440 mm |
| Weight: |
125 kg |
| Power supply: |
AC 230 V / 50-60 Hz |
| Ingress protection: |
IP 63 |
| Operating temperature range: |
-25°C - +40°C |
| Height range basic (optional): |
0-545 mm (0-945 mm) |
Ball weight:
| 9 mm (pistol calibres) |
55 g ± 0.57 g |
| 5,56 / 7,62 mm (rifle calibres) |
111.7 g ± 0.57 g |
| 12,7 mm (large calibre) |
225.1 g ± 0.57 g |

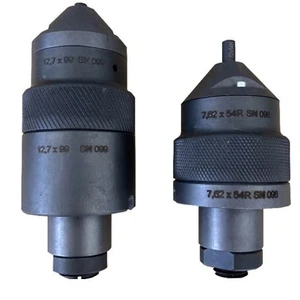

Standard fixtures heads for calibres:
| 22 LR |
5,45 x 39 mm |
300 AAC Blackout |
| 22 WMR |
5,56 x 45 mm |
338 Lapua Mag. |
| 4,6 x 30 mm |
7,62 x 25 mm |
12,7 x 99 mm |
| 9 x 18 Tokar. |
7,62 x 39 mm |
12,7 x 108 mm |
| 9 x 19 mm |
7,62 x 51 mm |
14,5 x 114 mm |
| 38 Special |
7,62 x 54R mm |
| 45 AUTO |
5,7 x 28 mm |
