POTSS-2021 Optical Target Scoring Systems

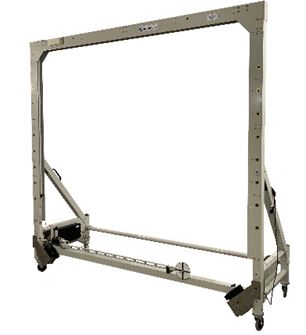

PROTOTYPA POTSS-2021 Optical Target Scoring Systems – is designed to record the position of projectile going through its active area. POTSS-2021 is able to register single shots or projectiles shot in burst. POTSS-2021 calculates X-Y coordinates of hits and consequently the statistics values of measured group of rounds. The results are displayed at the screen of personal computer with BMS software.
The basic components of system POTSS are two high speed image sensors, LED sources mounted on inside part of frame. When the bullet is passing through the active area, the light beam is shortly interrupted and narrow shadow appears on both sensors. The position of shadow is dependent on the position of the bullet. The captured image data are subsequently processed by the software and the position of hit is evaluated.
Appropriate device for testing of cartridges according MC MOPI AEP‑97.
Main features of POTSS-2021:
- Mobile device measures X,Y coordinates of bullets hits (single shots or burst of shots), order and rate of fire.
- Accuracy measuring of all types of bullets (subsonic, hypersonic or tracer bullets).
- The frame size can be customized on request.
- Device is controlled by PC computer (or laptop).
- Interface is Ethernet cable or Wi-Fi connection.
- User friendly BMS software supports other Prototypa ballistic measurement devices with automatic data export.
- Designed for outdoor use
- Removable aiming point remote controlled on request.
- Accuracy evaluation: Horizontal SD, Vertical SD, Mean point, R50, R100, Rm, Rdisp, Belt X, Belt Y, Rectangle, Max distance, H+L, MOA, etc.

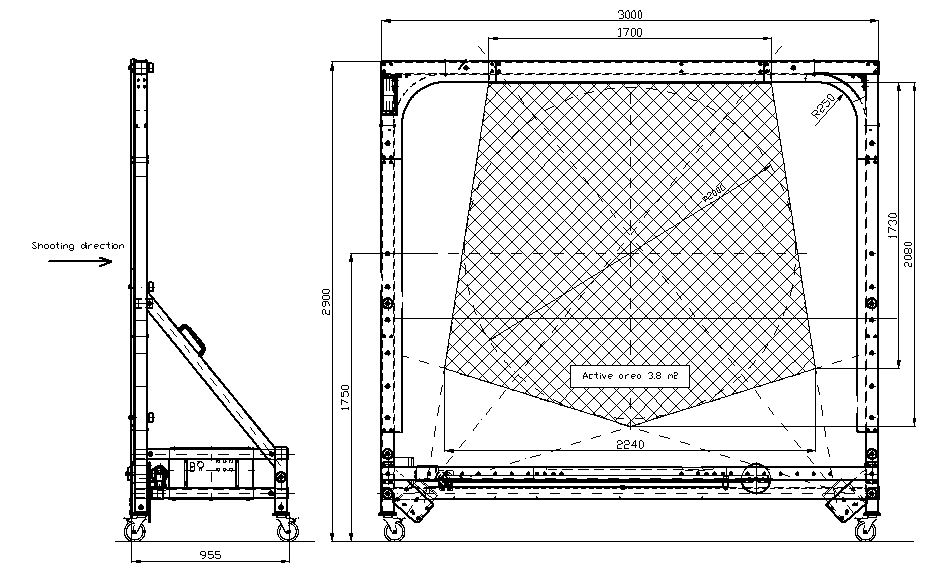

Technical parameters of POTSS-2021:
| Measured parameters: | X-Y coordinates |
| Principle of measurement: | Two image sensors |
| Calibre range: | from 4,5 mm to 40 mm |
| XY coordinate accuracy: | ± 2 mm |
| Interface: | 10/100 Ethernet, Wi-Fi |
| Active area: | Ø 2000 mm |
| Rate of fire: | Up to 2000 rds / min |
| Velocity range: | 20 - 1500 m/s |
| Power: | AC 230 V / 50-60 Hz DC 9-18 V, 160 VA max |
| Weight: | 140 kg |
| Operating temperature: | From -5°C to +40°C |
| Air humidity: | up to 70% |
| Ingress protection: | IP63 |
Optional accessories:
- Calibration rulers
- Armoured protection
- Removable aiming point for POTSS
- SAU-4QU for chamber pressure measurement
- Velocity light gates equipped SAU-2UT (SAU-4UT)
