POTSS-2019 Optical Target Scoring Systems

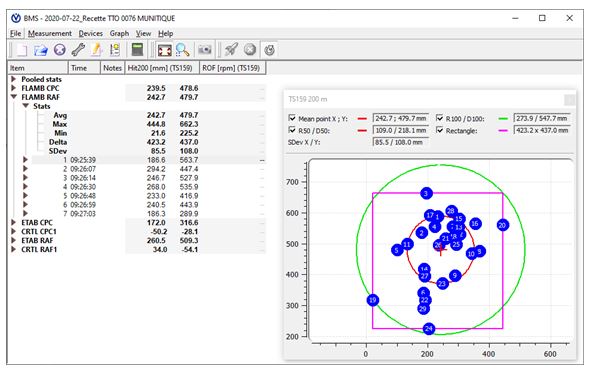

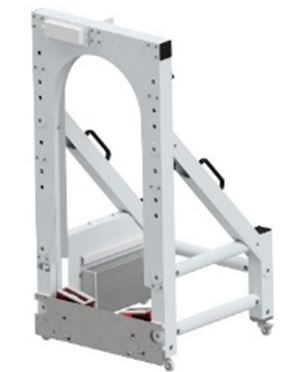

PROTOTYPA POTSS-2019 Optical Target Scoring Systems – is designed to record the position of projectile going through its active area. POTSS-2019 is able to register single shots or projectiles shot in burst. POTSS-2019 calculates X-Y coordinates of hits and consequently the statistics values of measured group of rounds. The results are displayed at the screen of personal computer with BMS software.
The basic components of system POTSS are two high speed image sensors, light sources and reflective tape. When the bullet is passing through the active area, the light beam is shortly interrupted and narrow shadow appears on both sensors. The position of shadow is dependent on the position of the bullet. The captured image data are subsequently processed by the software and the position of hit is evaluated.
Appropriate device for testing of cartridges according MC MOPI AEP‑97.
Main features of POTSS-2019:
- Mobile device measures X,Y coordinates of bullets hits (single shots or burst of shots), order and rate of fire.
- Accuracy measuring of all types of bullets (subsonic, hypersonic or tracer bullets).
- The frame size can be customized on request.
- Device is controlled by PC computer (or laptop).
- Interface is Ethernet cable or Wi-Fi connection.
- Users friendly BMS software supports other Prototypa ballistic measurement devices with automatic data export.
- Removable aiming point manually operated.
- Accuracy evaluation: Horizontal SD, Vertical SD, Mean point, R50, R100, Rm, Rdisp, Belt X, Belt Y, Rectangle, Max distance, H+L, MOA, etc.
Technical parameters of POTSS-2019:
| Measured parameters: | X-Y coordinates |
| Principle of measurement: | Two image sensors |
| Calibre range: | from 4,5 mm to 40 mm |
| XY coordinate accuracy: | ± 1 mm |
| Interface: | 10/100 Ethernet, Wi-Fi |

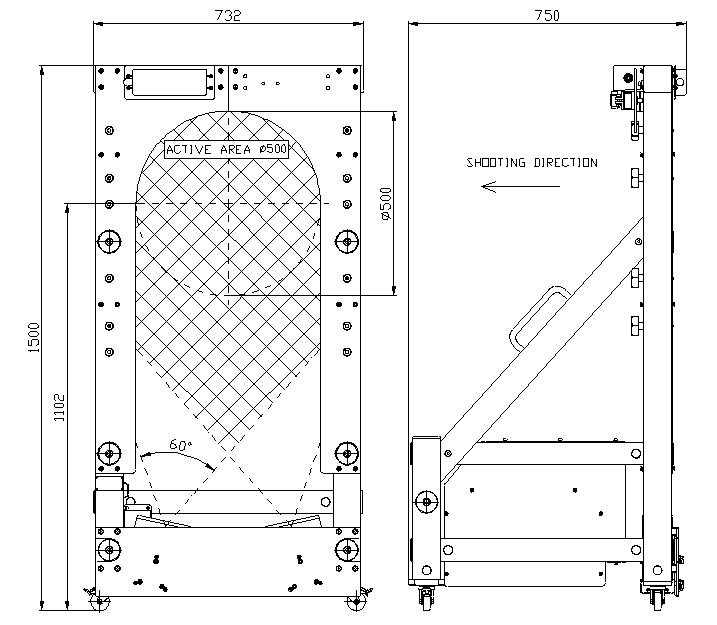

| Active area: | 0,2 m² (Ø 500 mm) |
| Rate of fire: | Up to 2000 rds/min |
| Velocity range: | 20 - 1500 m/s |
| Power: | AC 230 V / 50-60 Hz DC 9-18 V, 160 VA max |
| Weight: | 80 kg |
| Operating temperature: | From -5°C to +40°C |
| Air humidity: | up to 70% |
| Ingress protection: | IP63 |
Optional accessories:
- Calibration rulers
- Armoured protection
- SAU-4QU for chamber pressure measurement
- Velocity light gates equipped SAU-2UT (SAU-4UT)
- APP Aiming point projection
