MDTT-2014M2 Motor-driven Target Table

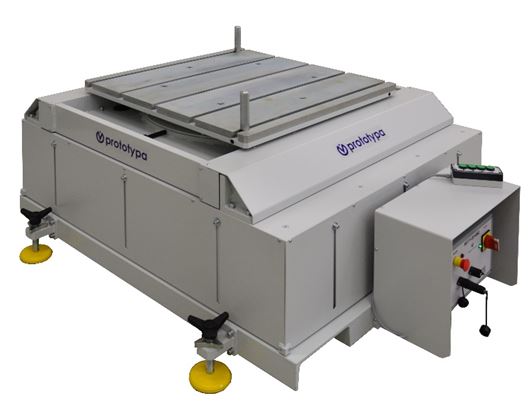

PROTOTYPA MDTT-2014M2 Motor-driven Target Table is designed for tests of ballistic protective materials There are special T grooves in the rectangular top of the table for fastening of the sample holders.
Target table is controlled electronically. It is possible to move samples up and down and to left and right. There are two options for controlling of the table. It can be controlled from panel on the table or remotely. It is also possible to set the samples into required position according to axis of the barrel by manual rotating of rectangular top. Top plate of the table is secured against rotation by handle. (Four brake bolts)
It is possible to use MDTT-2014M2 for testing samples by cartridges of cal. up to 12,7 mm.
Main features of MDTT-2014M2:
- Simple manual control with manual brake against rotation of top plate during tests.
- Possibility of control the table by panel on the construction or by remote control panel.
- Possibility of movement up, down, to left and to right.
- Sample fastened in to the holder can be turned and tested under the different angles.
- T grooves are used for fastening of the holder of sample on circular top plate.
- It is possible to transport whole construction by pallet truck or swivel castors with lock
- MDTT-2014M2 can be used for testing with calibres up to 12,7 mm.
- Compatibility with PROTOTYPA equipment (e.g. – HF-1 head form, SMJF – Sample holders) is guaranteed.
Technical parameters of MDTT-2014M2:
| Maximal calibre: | 12,7 mm |

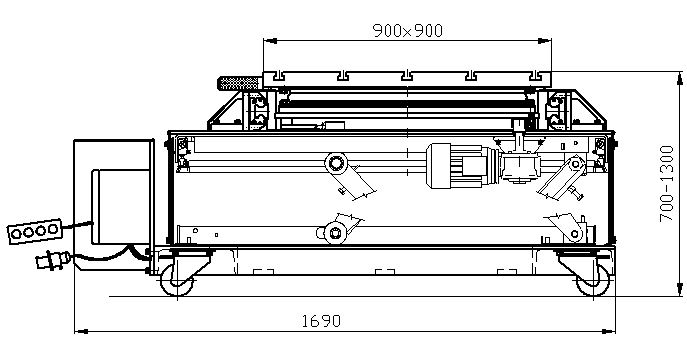

| Length: | 1690 mm |

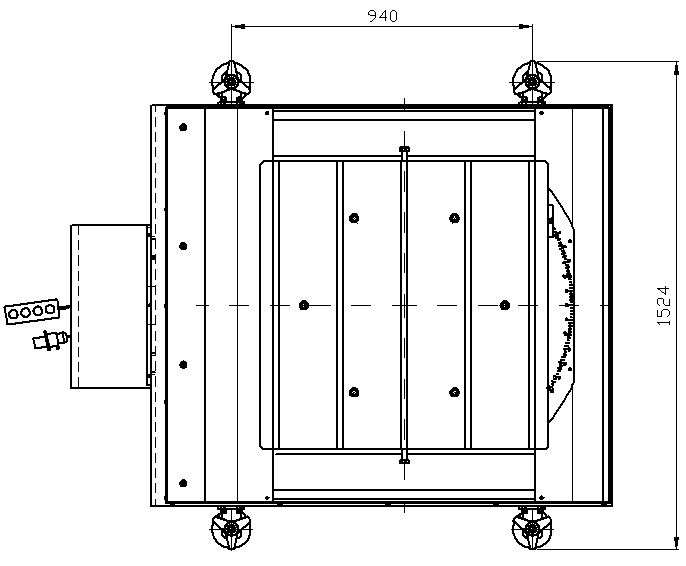

| Width: | 1520 mm |
| Height: | 700 – 1300 mm |
| Table stepless turning range: | 360° |
| Distance of transversal movement: | ± 400 mm |
| Max. weight of target placed on table: | 1000 kg |
| Total weight max.: | 1750 kg |
| Power: | 3x400V, 5A |
