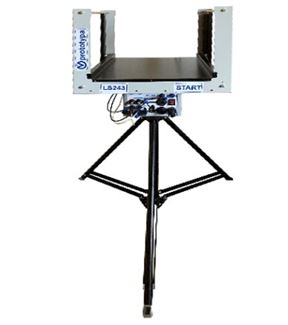

LS-02 Intelligent Light Gates (Single or Double)
PROTOTYPA LS-02 Intelligent Light Gates – is device designated to measure the velocity of shot projectile going through on active area of both light gates. LS-02 can measure the velocity of single shot or projectiles shot in burst. LS-02 records all measured values and consequently calculates the statistics values of measured group of rounds. The results are displayed at the screen of personal computer with BMS software. LS-02 can evaluate the rate of fire too.
LS-02 double represents two independent velocity measurement systems. The light gates LS-02 double consists of four light screens (gates) placed on one frame. Each pair creates one measurement system. LS-02 double works on the same principle as LS-02.
Main features of LS-02:
- LS-02 measures projectiles velocity and rate of fire of shot burst.
- Software BMS is developed by Prototypa.
- Evaluation of statistical data.
- Immediate result.
- Installation and training of equipment at the customer by Prototypa engineers is required.
- Wired or wireless connections.
- Compatible software with other Prototypa devices.
- Simple and fast generation of protocols from measurement.
- Data processing from multiple devices at one time.
- Mobile device.
- Calculation drop of velocity (two light gates at different distance are required).
Technical parameters of LS-02:
| Measured parameters: | Bullet velocity, Rate of fire |
| Principle of measurement: | two light emitters and light detectors |
| Calibre range: | from 4,5 mm to 40 mm |
| Interface: | 10/100 Ethernet, USB, Wi-Fi |
| Bullet velocity – Range: | 25 – 2 000 m/s |
| Bullet velocity – Resolution: | 0.1 m/s |
| Rate of fire – Range: | 60 – 3 000 rpm |
| Rate of fire – Range: | 0.01 rpm |
| Accuracy: | 0.2% |
| Operating temperature range: | -10ºC to +40ºC |
| Height of midpoint: | 1125 - 1715 mm |
| Weight: | 25 kg (Single), 35 kg (Double) |
| Power AC: | 80-240 V / 50-60 Hz, 100 VA max |

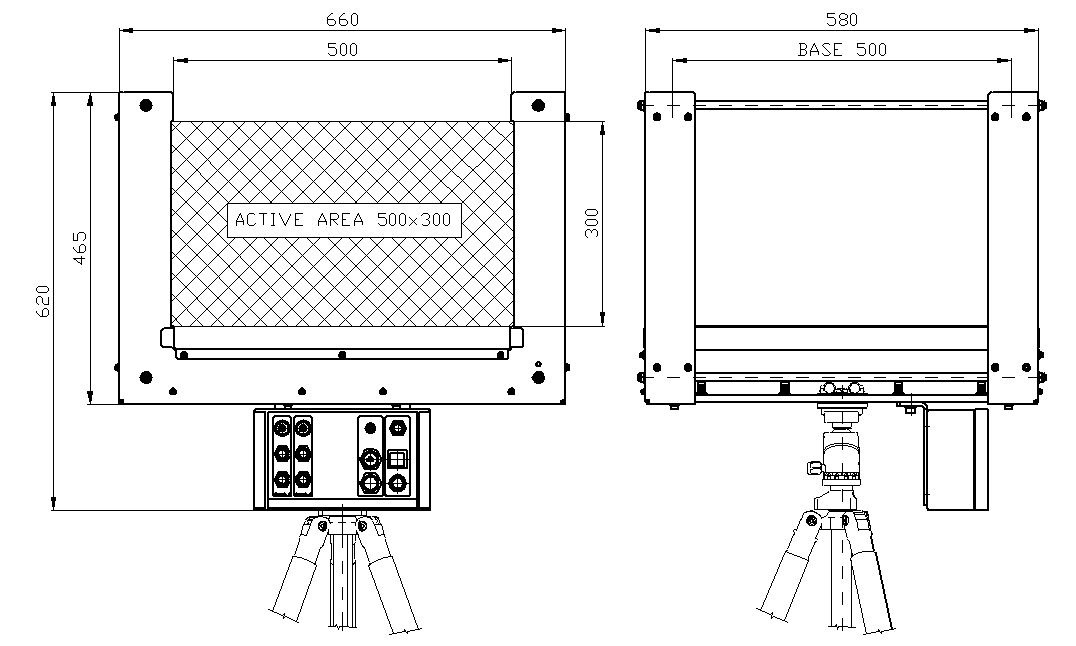

| Active area: | 0,15 m² (300x500 mm) |
| Ingress protection: | IP63 |
| Basis: | 500, 634 mm (optional) |
Optional accessories:
- Electronic box SAU-2UT or SAU-4UT
- PC desktop/laptop, Printer
- Armoured Protection against standard pistol cartridges
