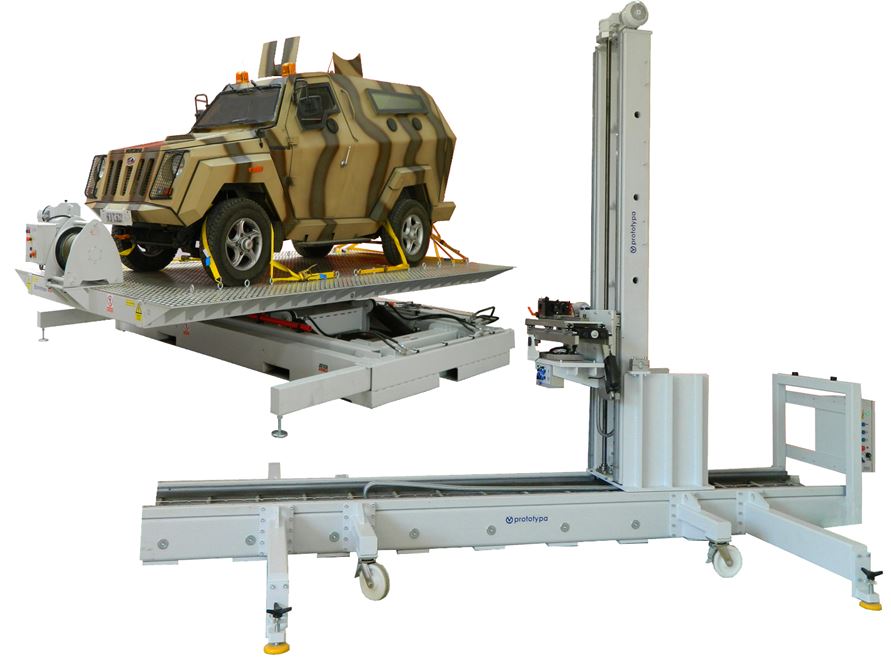

GM1 Moving Gun Table and Vehicle Manipulator

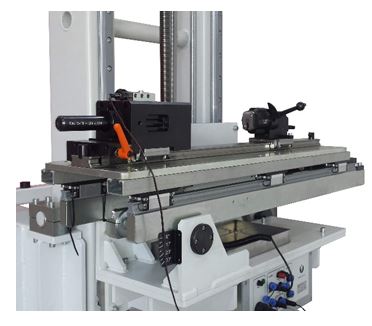

PROTOTYPA GM1 Moving Gun Table and Vehicle Manipulator is convenient equipment for evaluation of protection level of armoured vehicles (AEP-55) Level 1 and 4. GM1 platform is equipped by recoil system. On recoil system is possible fix UZ-2002 Universal Ballistic Breech or adapter for fixing small arms up to calibre 12,7mm. Equipment makes it possible to aim weapons and fire at vehicle under requested conditions of AEP-55.
Technical parameters of

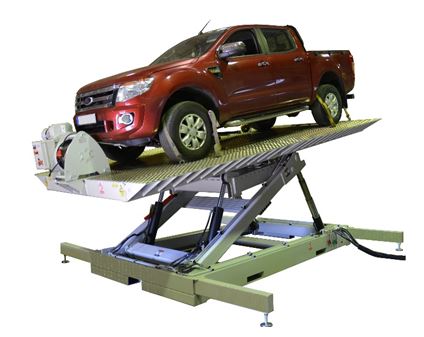

| Vehicle manipulator: | Moving Gun Table: | ||
| Platform: | 3000x5000 mm | Size (LxWxH): | 5500x3000x4000 mm |
| Capacity: | 6000 kg | Weight: | 3000 kg |
| Angle of tilt: | 0-30° | Caliber: | 12,7 mm (14,5mm) |
| Angle of rotation: | 0- 360° | Elevation: | -30-0° |
| Weight: | 6800 kg | Vertical movement: | 1000…3500 mm |
| Power: | 3x400V, 32A | Horizon. movement: | 0…4000 mm |
Optional accessories:
- Universal ballistic breech UZ-2002
- Universal Adaptors
- Firing device REFICO-F
- DRS-1 Doppler Radar System
