EMG-1 Muzzle Velocity Sensor

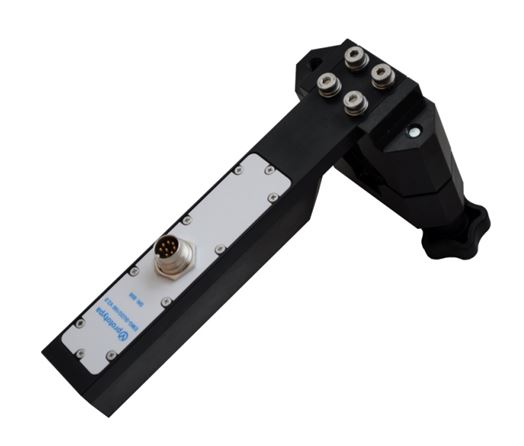

PROTOTYPA EMG-1 Muzzle Velocity Sensor is a device intended for muzzle velocity and rate of fire measurement. EMG-1 is suitable for tasks where it is difficult to use the velocity light gates due to strong disturbing effects (strong flash, hot gases, etc.)
Main features of EMG-1:
- Measurement of muzzle velocity and rate of fire.
- Base on electromagnetic principle.
- Usable for all types of metal projectiles and fragments.
- Designed for ballistic barrels.

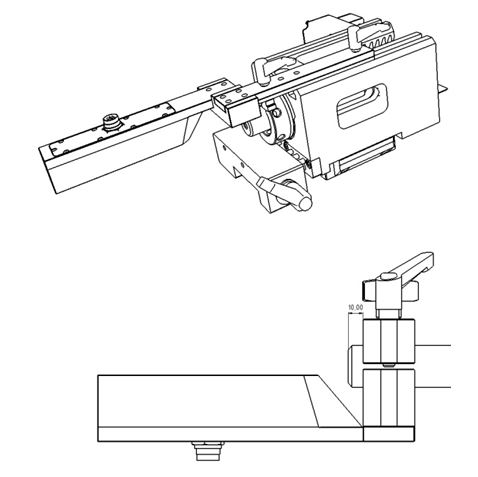

- Set of muzzle clamps for fixing the sensor to the ballistic barrels.
- Suitable for connection to Signal Acquisition Unit SAU-2UT.

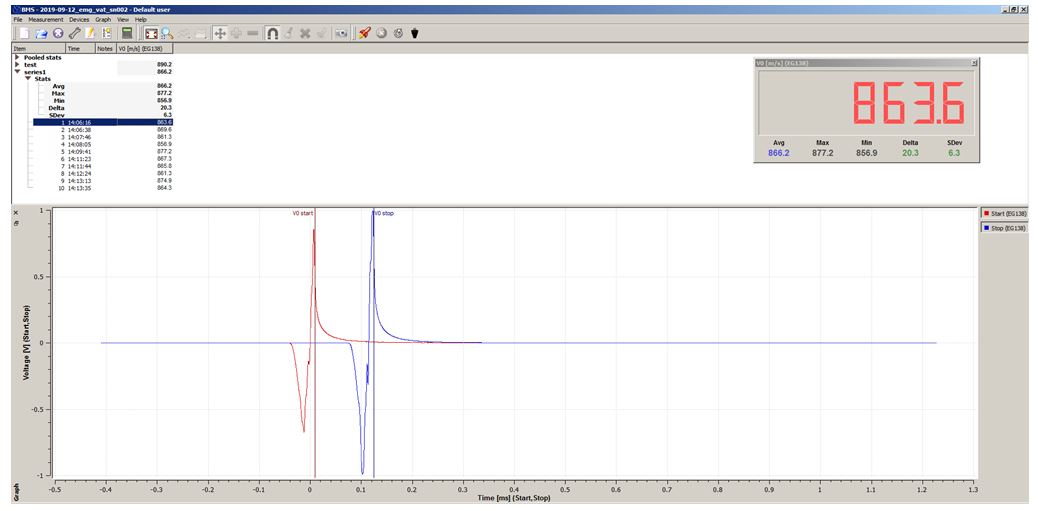

- Evaluation using the program module integrated into ballistic measurement software BMS.
- Compact and portable equipment.
Technical parameters of EMG-1:
| Measured parameters | Bullet velocity, Rate of Fire |
| Calibre range | 2 – 12 mm |
| Measurement base | 100 mm |
| Bullet velocity: | |
| Range | 50 – 2500 m/s |
| Resolution | 1 m/s |
| Accuracy | 0.5% |
| Rate of fire: | |
| Range | 60 – 10000 rpm |
| Resolution | 0.01 rpm |
| Accuracy | 0.2% |
| Interface | 10/100 Ethernet, USB, Wi-Fi |
| Power supply | AC 90 - 260 V / 50 - 60 Hz, 100 VA max. DC 9-18 V, 100 VA max. |
| Operating temperature range | -10°C to +40°C |
