BMS PZM EPVAT Ballistic Measuring System
PROTOTYPA EPVAT (Electronic Pressure Velocity Action Time) Ballistic Measuring System BMS PZM is convenient with NATO STANDARD AEP-97 (MC MOPI) and consists of:

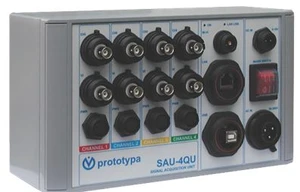

- SAU-4QU Signal Acquisition Unit for pressure and action time measurement
- LS-06 Light Gates for velocity measurement
- Insulated firing pin or accelerometer
- Muzzle sensor
- Piezo transducers
- POTSS Optical Target System for additional accuracy measurement
Main features of BMS PZM:
- Evaluation program module integrated into the environment of BMS system (Ballistic Measurement System).
- Graph and maximum value of chamber pressure.
- Graph and maximum value of port pressure.
- Action time.
- Velocity, signal waveforms.
- XY coordinates, dispersion and precision evaluation.
- Distributed measuring system consists of standalone devices.
- Wireless (Wi-Fi) or wire (Ethernet) connection.
Technical parameters of SAU-4QU:
| Acquisition channel No. | 4 (either voltage or charge input can be used on single channel) |
| Voltage input range | ± 2 V / ± 10 V |
| Charge input range | ± 2 nC / ± 10 nC |
| Charge input filter | 2nd order Butterworth type, 20 kHz cutoff frequency |
| Sample rate | 156.25 kS/s – 10 MS/s |
| Vertical resolution | 14 bits |
| Memory size | 256 kS per channel |
| Impedance of voltage input | 5 kΩ |
| Input connector type | BNC compatible |
| Interface | 10/100 Ethernet, 802.11b,g (Wi-Fi), USB |
| Power supply | 90 – 260 VAC, 50 – 60 Hz, 130 VA max. |
| 9 – 18 VDC, 130 VA max. | |
| Operating temperature | -10ºC to +40ºC |
| Dimensions | 260x150x120 mm |
